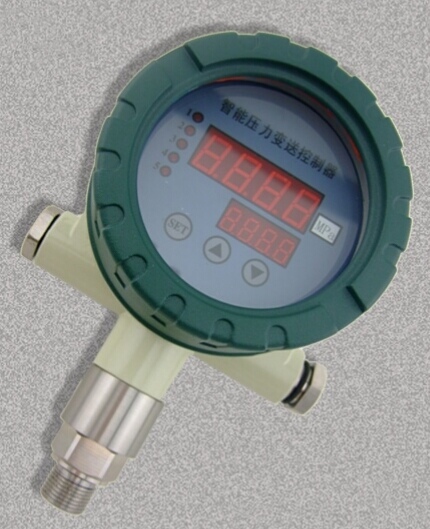

WM12082 Ex-proof Pressure Switch (Pressure Controller) is a type of explosion proof product for pressure measurement and control with 2 or 5 relay controllers and transmission output of 4-20mA and RS485. It is a full electronic structure, converting the signal from pressure sensor into standard output by high precise A/D microprocessor processing. It can display the pressure, and outputs the analog transmission and switching controllers. This smart digital pressure switch is flexible, safe, reliable easy to operate. It is widely used in hydroelectric, petroleum, chemical, mechanical, hydraulic and other industries.

Features

Simple wiring.

The product can work as ex-proof requirement.

ExdIICT6 ex-proof grade.

Easy to set and operate.

100mm dial

4 bits LED display. WM120825 has dual indicators

The power supply is 24VDC and 220VAC optional

Technical Parameters

Range: -0.1~0-100MPa

Display：-1999~9999

Accuracy: 0.2%

Control output: relay, 4-20mA, RS485

Pressure control points and hysteresis: can be set in full range

Contact capacity: 220V/3A, 24V/10A

Power consumption: 1W

Input voltage: 24V/220V optional

Working temperature: -20 -70℃

Compensation temperature: -10 -60℃

Stability：±0.2%FS/year

Overload capacity：200-300%

Housing material: cast aluminum alloy
